Portable Ultrasound Bladder Scanner CBMPU43

Inquire

Ｘ

Leave a Reply

Your email address will not be published. Required fields are marked *

  • Product Description

To improve the accuracy of the operation and measurement, the screen of Portable Ultrasound Bladder Scanner CBMPU43 displays the B-mode image of section bladder and the projection of bladder. It is convenient for doctors to check the location and determine the measurement results.

Features of Portable Ultrasound Bladder Scanner CBMPU43

  • Quickly, accurately, and noninvasively measures bladder volume

  • Helps assess urinary retention and postoperative urinary retention

  • Helps prevent unnecessary catheterization

  • Helps reduce rates of catheter-associated urinary tract infection

  • Helps improve efficiency, reduce costs, and save staff time

  • Easy to use--no sonographer required

  • Working time with Li-battery about 5 hours


Specification of Portable Ultrasound Bladder Scanner CBMPU43

1. Technical data

  • Monitor: 3.5” LCD

  • Adapter rating: 100-240V~, 1.2-0.6A, 50-60Hz (model: BJE01-40-001M)

  • Output of adapter: DC12.8V 3.0A

  • Main device rating: DC12V 3.0A

  • Main Unit Size: approx. 90 * 98 * 25 (L * M * H, mm)

  • Weight of main unit: approx. 750g (including battery and probe)

2. Primary functions

  • System date and time setting function.

  • Probe protection function.

  • Energy saving.

  • Alarm volume prompt function.

  • Image contrast adjustment function.

  • Patient type selection function.

  • Urine volume measurement function.

  • Display date and time, battery electricity.

  • Switch Standard-Lite function.

  • Switch Chinese-English function.


Standerd Configuration of Portable Ultrasound Bladder Scanner CBMPU43

  • Main unit    1DC

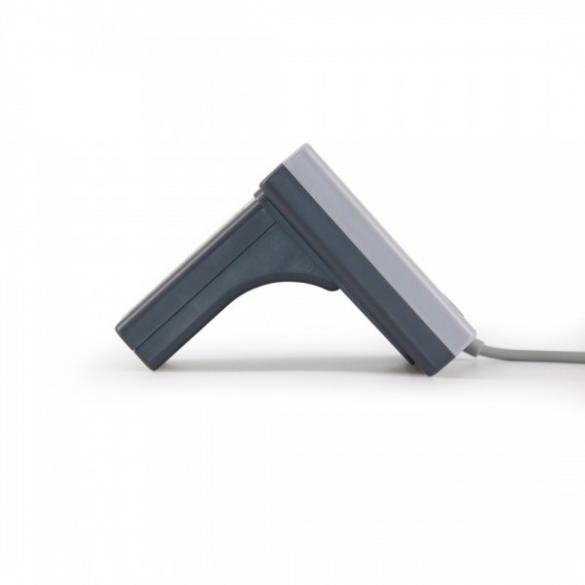

  • 2. 5MHZ 3D probe    1pc

  • Power supply adapter 1pc

  • Internal battery    1DC

  • OTG U disk    1pc
