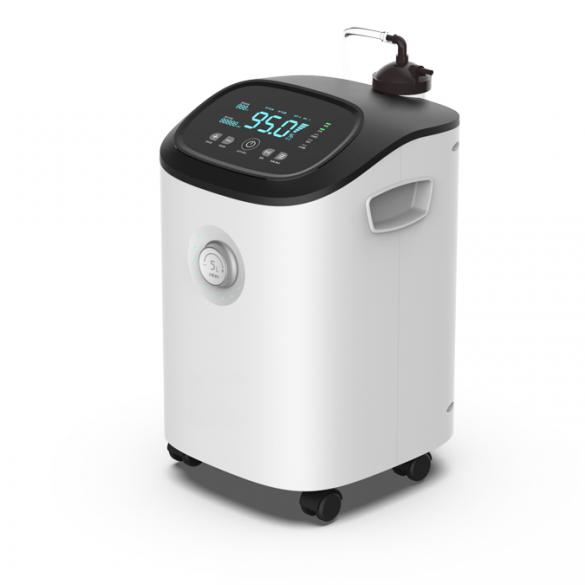

MSLJY46 Medical Oxygen Concentrator
⚫ Specifications and Parameters
I. Basic parameters
Model |
Oxygen produced (L/min) |
Oxygen concentrati on (V/V) |
Nebulizing rate (ml/min) | Maximum outlet pressure (kpa) |
Nebulizi ng function |
Input power (VA) |
3L |
3 |
93%±3% |
≥0.15 |
20 |
Available |
300 |
MSLJY46 |
5 |
93%±3% |
≥0.15 |
20 |
Available |
450 |
II. Under the nominal recommended flow, the oxygen concentration in the product gas is 93%±3% (V/V); when a back pressure of 7kPa is applied, the maximum recommended flow rate should change within
±10%.
III. There is a pressure release device in the humidification bottle. The pressure release value is 20±2kpa.
IV. Normal operating conditions:
1. Ambient temperature: 5℃～40℃
2. Relative humidity: ≤80%
3. Air pressure range: 86 kPa～106 kPa
4. Power: AC220V/50Hz
V. Oxygen concentration: 93%±3%（V/V）
VI. The noise of medical oxygen concentrator should be ≤60dB (A) during normal operation.
VII. Alarm for abnormal oxygen concentration: The oxygen concentration is lower than 82% five minutes after the oxygen concentrator is turned on, with an error of ±3%.
VIII. Alarm sound:> 60dB (A)
IX. Temperature rise of medical oxygen concentrator: Under normal working conditions, the maximum temperature of the plastic housing is ≤60℃, and the gas temperature at the oxygen outlet of the oxygen concentrator is ≤46℃.
X. Nebulizing characteristics: The working pressure should be within the range of 30 kPa ~ 180 kPa, the gas flow should be ≥5L/min, the residual liquid volume should be ≤1mL, and the nebulizing rate should be ≥ 0.15 mL/min.

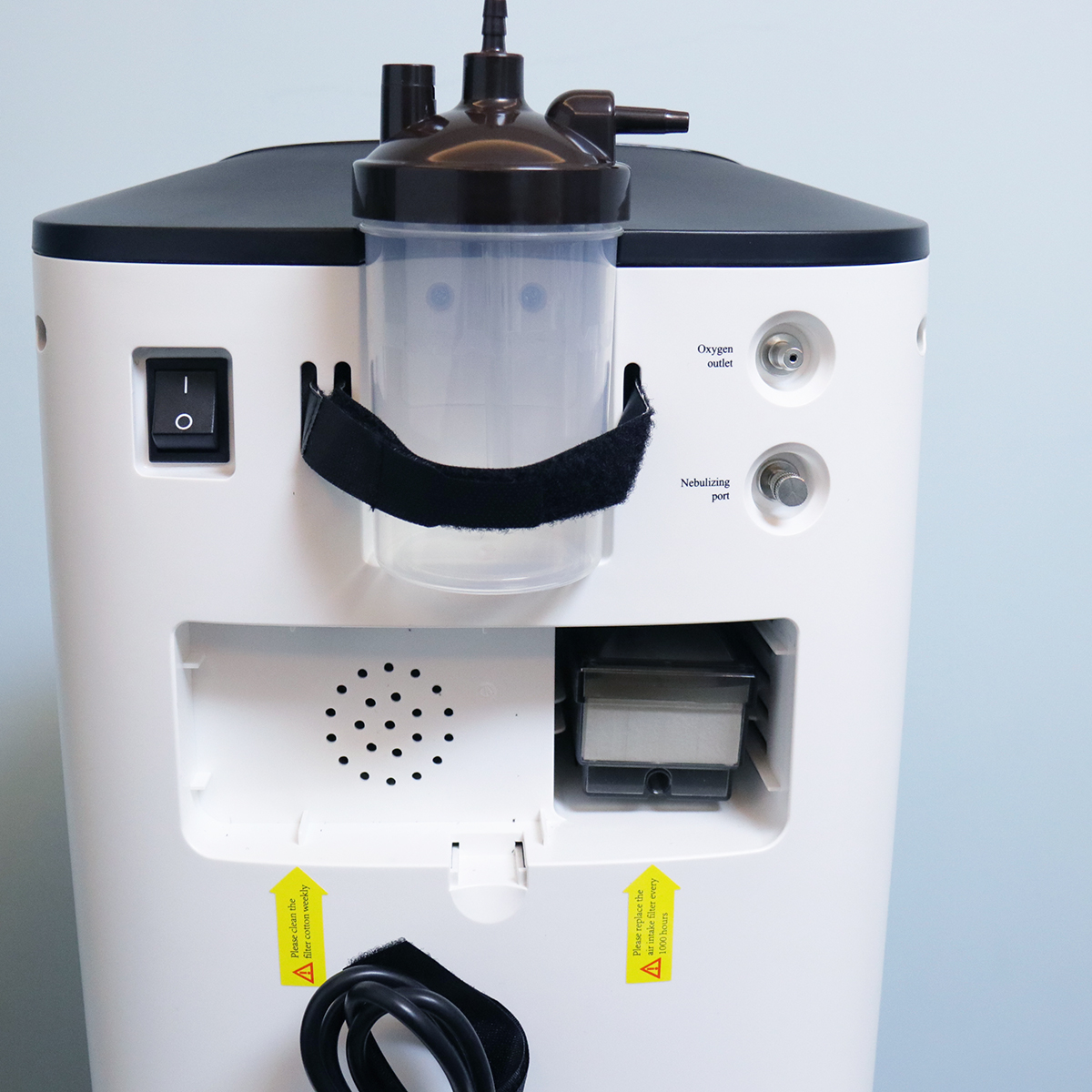

⚫ Important Spare parts of Oxygen Concentrator
NOTE: Please get familiar with the oxygen concentrator before using it.
1 |
Power switch |
2 |
Oxygen outlet |
3 |
Nebulizing port |
4 | Humidification bottle |
5 | Air filter cotton cover |
6 |
Power cord |
7 |
Overload protector |
8 |
Caster |
9 | Power indicator light |
10 | Normal working indicator |
11 | Low oxygen concentration indicator |
12 | Maintenance indicator |
13 | Reminder indicator for filter replacement |
14 |
Timing + |
15 |
Timing - |
16 | ON / OFF Button |
17 |
Voice on and off |
18 | Nebulizing/oxygen concentrating switching button |
19 | Nebulizing indicator |
20 | Flow regulating valve |
21 | Oxygen concentration indicator |
22 |
Timing display |
23 | Cumulative time display |
24 |
Flow display |
